Ultra speed universal 4x 64-pindrive production multiprogrammer,
the design was focused on high-capacity memories programming.


  • 4x 64-pins rich-features, precise and powerful pindriver provides programming signals for every
  • technology of programmable devices
  • it supports devices with VCC voltages as low as 0.8V
  • ultra fast programming speed, one of the fastest programmers worldwide. Sustainable programming speed greater than 31 MBytes per second
  • the 8 GB eMMC NAND Flash could be done in less than 250 sec, if supported memory is fast enough
  • it utilizes both universal programming modules, dedicated for IC package type and specialized modules, designed optimized for specific device families


  • BeeHive304 is next member of Elnec concurrent universal multiprogrammer series, built to meet the strong demand for an extremely fast and reliable multiprogrammer for high-capacity memories.
  • Designed with great emphasis on technical perfection and speed of hardware, this programmer perfectly fits for high-demanding desktop programming as well as for automated programming systems and ATE machines, where ensures the highest quality and overall yield.
  • BeeHive304 consists of four independent isolated universal programming sitess, based on the BeeProg3 programming core hardware. Therefore the programming sites can run asynchronously (concurrent multiprogramming programming mode). Each programming site starts programming at the moment the chip is detected to be inserted in the socket properly - independently on the status of other programming sites. As a result, three programming sites works, while you are replacing the programmed chip at the fourth site.
  • The BeeHive304 multiprogrammer supports as many chips, as the BeeProg3 programmer and without obvious decrease of programming speed because each programming site works independently. Also each programming site can program a different chip, if necessary.
  • Because the BeeProg3 programming core is based on a state of the art FPGA, powerful ARM processor and internal SSD, BeeHive304 is ready to program devices at theoretically possible speeds. The achieved ultra fast programming speed - more than 31 MB/s sustainable - is actually higher, than can be utilized for most of real devices. This is reflected in extremely short programming times. For example, the 8 GB eMMC NAND Flash could be done in less than 250 sec - if programmed memory allow that speed.
  • Tests show, that the BeeHive304 is currently faster than all competitors in this price category (status: 10/2015), and for many chips is the fastest at all.
  • BeeHive304 supports all kinds of types and silicon technologies of today's and tomorrow's programmable devices. It partially supports also devices "from yesterday". You can be sure the next devices support will require the software update only, at the most (if necessary) simple programming module, therefore the costs of ownership is minimized.
  • For the proper and reliable programming of ultra-fast memories the BeeHive304 utilizes specialized modules, optimally designedfor specific device families, exactly according to the needs of programmed devices. But if it is possible, then universal programming modules, dedicated for IC package type, are used. The programming modules are identical for all programmers based on the BeeProg3 programming core.
  • Programming modules construction is designed for perfect stability at the top of the programmer, to be tough enough for insert/replace chips by mechanical arm and also allows to keep identical position of ZIF socket also after replacing of the module.
  • Modular construction of hardware - the programming sites works independently - allows for continuous operation when a part of the programming sites becomes inoperable. It also makes service quick and easy.
  • The sensing circuits detect proper placement of device in the socket of programming module, which allows to begin programming immediately upon insertion of a chip. The operator merely removes the finished chip and inserts a new chip. Operator training is therefore minimized.
  • BeeHive304 interfaces with any IBM PC compatible personal computers, running MS Windows OS, through USB (2.0 HigSpeed) port or LAN port (up to 1 Gb).
  • Banana jack for ESD wrist straps connection to easy-to-implement the ESD protection control.
  • With its very competitive price together with excellent hardware design for reliable programming, it is probably the best "value for money" programmer in this class.

HARDWARE (valid for each programming site)
  • The 64-pin rich-features, precise and powerful pindriver of BeeProg3 programming core deliver high speed, accurate and clean waveform signals to the device by eliminating noise, ground bounce and overshoot, which maximizes programming yield and guarantees long data retention. This also allows the reliable support of virtually any nonvolatile technology used for programmable devices - (E)EPROM, Flash, MRAM, PCM, ... - by a single device programmer.
  • FPGA based totally reconfigurable TTL pindrivers provide H/L/pull_up/pull_down and read capability for each pin of the device. The dual H/L drivers enables to provide two different H levels for both core signals and I/O signals of programmed device without additional logic. Programmer pindrivers operate down to 0.8V, therefore the programmer is ready to program the full range of today's and tomorrow's advanced very-low-voltage devices.
  • Extremely fast programming, achieved by using FPGA based state machine, fast processor and SSD, allow execution of all time-critical routines and data transfers inside of the programmer.
  • The programmer performs device insertion test based on the check of proper signal path between the programmer and programmed device before it programs each device. In dependence on programming configuration it identifies missed or poor contact between programmed device and the ZIF socket of the programming module, missed or poor contact between the programming module and the programmer and it's also able to indicate wrong position of device in the ZIF socket or the programming module (moved, rotated, backward oriented). These capabilities, supported by overcurrent protection and signature-byte check help prevent chip damage due to operator error.
  • The selftest capability allows to run the diagnostic part of software to thoroughly check the health of the programmer.
  • Built-in protection circuits eliminate damage of programmer and/or programmed device due to environment or operator failure. All the inputs of the BeeProg3 programming core - pins of programming modules interface (pindriver signls and also supporting signals), connection to PC and power supply input, are protected against ESD up to 15kV.
  • The programming modules are available for devices in PDIP, PLCC, JLCC, SOIC, SDIP, SOP, PSOP, SSOP, TSOP, TSOPII, TSSOP, QFP, PQFP, TQFP, VQFP, QFN (MLF), SON, BGA, EBGA, FBGA, VFBGA, UBGA, FTBGA, LAP, CSP, SCSP, LQFP, MQFP, HVQFN, QLP, QIP and other packages.

SOFTWARE (production mode control SW: PG4UWMC)
  • This part of the software is focused to the easy monitoring of high-volume production operations.

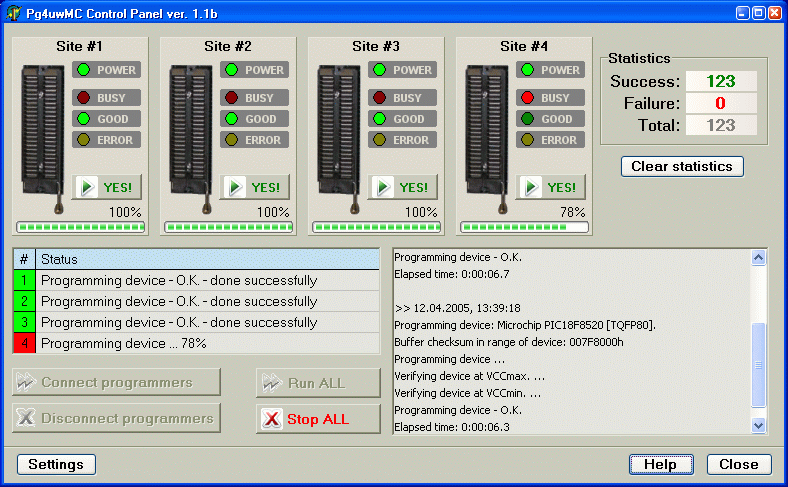

  • Operator-friendly control software combines many powerful functions with ease of use. Graphic user interface provide overview of all important activities result without burden of operator with non-important details.

  • There is used a project file to control the BeeHive304 multiprogramming system. Project file contains user data, chip programming setup information, chip configuration data, auto programming command sequence, etc. Therefore the operator error is minimized, because the project file is normally created and proofed by engineering and then given to the operator. The optional protected mode can be set for project file to avoid a unwanted changes of the project file.
  • Each chip may be programmed with different data such as serial number, configuration and calibration information using rich-features serialization system.

SOFTWARE (programming sites driver, engineering mode control SW: PG4UW)
  • This part of the software is focused to the quick and easy preparation of the project file for usage in the production mode control software.
  • Each programming site is driven by a comfortable and easy-to-use control program with pull-down menu, hot keys and on-line help. It is the same years-proven software, as is used for all other Elnec single-site programmers.
  • Selecting of device is performed by its class, by manufacturer or simply by typing a fragment of vendor name and/or part number. Standard device-related commands (read, blank check, program, verify, erase) are boosted by some test functions(insertion test, signature-byte check), and some special functions (autoincrement, production mode - start of programming immediately after insertion of chip into socket).

  • All known data formats are supported. Automatic file format detection and conversion during loading of file.
  • The software also provides - in the Device information section - lots of information about the programmed device. As a special, the drawings of all available packages are provided. The software also provides explanation of chip marking (the meaning of prefixes and suffixes at the chips) for each supported chip.
  • The rich-featured serialization function enables one to assign individual serial numbers to each programmed device - or simply increments a serial number, or the function enables one to read serial numbers or any programmed device identification signatures from a file and program it to programmed device.
  • Jam files of JEDEC standard JESD-71 are interpreted by Jam Player. Jam files are generated by design software which is provided by the manufacturer of respective programmable device. Chips are programmed through JTAG (IEEE 1149.1 Joint Test Action Group) interface.
  • VME files are interpreted by VME Player. VME file is a compressed binary variation of SVF file and contains high-level IEEE 1149.1 bus operations. SVF files are interpreted by SVF Player. SVF file (Serial Vector Format) contains high-level IEEE 1149.1 bus operations. SVF files are generated by design software which is provided by manufacturer of respective programmable device. Chips are programmed through JTAG interface. VME files are generated by design software which is provided by manufacturer of respective programmable device.

Implementation into automated programming systems
  • BeeHive304 programmer is ready for usage in the automated programming systems. The dimensions of programmer are reduced to technical minimum for this features&quality hardware in intent to minimize overhead of the handler's arm movement. The construction is mechanically stable to be immune against vibration during operation. The case of BeeHive304 is prepared to be fastened from top or from bottom of programmer body into automated programmer working place.
  • The BeeHive304 can be implemented into automated programmer (as a replacement of obsolete programmer for example) or into some handler using more ways:
    • 1) if one or two BeeHive304 programmers are enough to do all job, then is enough to use one control PC for whole programming system, for both machine control and also programmer software. The BeeHive304 can be attached to this computer using USB or LAN port.
    • 2) if more than two BeeHive304 programmers is necessary to implement into automated programmer, then more computers are necessary to use. Whole system is scalable up to 64 programming sites in one automated programming system by multiplying of BeeHive304 programmers and the control PCs. Maximal configuration comprise of 16x BeeHive304 programmers. One control computer in the system serve as a master unit. Here is running also multiprogramming control software, serialization engine and interface to the host system. Interfacing of control PCs in whole network is done over standard LAN.

  • Implementation of BeeHive304 into software of automated programmers and handlers is by using of simple remote control of the PG4UWMC control software. There exist examples of implementation for standard programming languages and of course we are ready to help customer with this task.

Care for the customers

  • New Device Request (AlgOR Service)
    • It is important to remember, that a support of most of the new devices requires only a software update, because the BeeHive304 is truly a universal programmer. With our prompt service, support for the new device can be added within a hours. See AlgOR (Algorithm On Request) service and OnDemand software for details.
    • This service is in almost all cases free. Please note, however, that we can ask the customer to share the costs, if development and manufacturing costs are too high.

  • Free life-time software updates
    • Most current version of Elnec programmers software, with support of newly added devices, is available for free here.

  • Free Technical support
    • Elnec provide customers technical support (WebForm/e-mail based) available usually within a few hours, r at the latest, the next working day.

  • Keep-Current service
    • Keep-Current service means, that Elnec ships the latest version of programmer software and updated user documentation (Keep-Current package) to the customer . The Keep-Current service is your hassle-free guarantee that you are achieving the highest quality programming on Elnec programmers, at minimal cost.

  • Prompt delivery
    • Combination of extensive stock, flexible manufacturing and shipping of Elnec products by world class carriers (like DHL) guarantees customers very fast and secure delivery of ordered Elnec products. Products ordered before 10 a.m. (CET) will be dispatched the same working day - if products are in stock and the payment is done by Online payment (CardPay, PayPal).
  • Warranty
    • Advanced design of the BeeHive304 universal programmer, including protective circuits, original brand components, careful manufacturing and burning-in allow us to provide a three-year warranty on parts and workmanship of the programmer.
    • Elnec provides free shipping of programmer repaired under warranty back to customers worldwide. The warranty is valid from the date of purchase.
    • Preferential handling of repair requests ensures registration of the product that should be done within 60 days from the date of purchase here.

Specification (BeeHive304 multiprogramming system)

  • 4x universal programming sites (4x BeeProg3 programming core)
  • operation result LEDs, LED power
  • USB 2.0 high-speed compatible port, up to 480 Mbit/s transfer rate, connected to internal USB hub
  • 1 Gbit LAN port, connected to internal LAN switch
  • line power input 100-240VAC/90W max (using external power supply unit).
  • protection against surge and ESD on all inputs (power, communication, programming module interface)
  • banana jack for ESD wrist straps connection
  • banana jack for connection to ground

Specification (valid for each programming site)


Base unit, DACs

  • USB 2.0 high-speed compatible port, up to 480 Mbit/s transfer rate
  • 100Mbit LAN port
  • on-board intelligence: powerful processor (ARM9 400MHz) and FPGA based state machine (basic clock 50 MHz plus PLLs)
  • built-in mSATA SSD as internal buffer (128GB type, upgradeable to higher capacity)(*1, *2, *3, *4)
  • three D/A converters for VCC1, VCC2, and VPP, controllable rise and fall time
  • VCC1, VCC2 range 0.8V..7V/1A (step 10mV)
  • VPP range 0V..25V/1A (step 25mV)
  • Temperature controlled fans
  • selftest capability
  • protection against surge and ESD on power supply input, USB and LAN port and pins of programming module interface (PMI)(IEC1000-4-2: 15kV air, 8kV contact)
  • banana jack for ESD wrist straps connection
  • screw with two washers for connection to ground

  • *1: the data in the buffer are stored in fragments and also partially compressed, therefore the buffer can keep standard data also for bigger size devices, than current size of the buffer
  • *2: this upgrade is mechanically complicated and can be done at Elnec only
  • *3: the programmers up to s/n 3004-00041 (including) was supplied with 32GB SSD as internal buffer.
  • *4: the 128GB SSD can store as a buffer roughly 110GB of the random data (28GB in case 32GB SSD), the bigger sizes SSD, proportionally. If you plan to work/copy eMMC/NAND device, which might contain random data in full range of the device size, we recommend to have equal capacity buffer in the programmer.

Pindriver (available on the Programming Module Interface (PMI) - connectors for programming modules)

  • pindrivers: 64 universal
  • VCC1/VCC2 and VPP can be connected to each pin
  • perfect ground for each pin
  • 2 independent FPGA based TTL driver provides H, L, CLK, pull-up, pull-down on all pindriver pins, logic level 0,75V - 5V (IOL and IOH current 20mA)
  • logic signals frequency: up to 125MHz (3.3V), 80MHz (5V)
  • analog pindriver output level selectable from 0.8 V up to 25V
  • current limitation, overcurrent shutdown, power failure shutdown
  • continuity test: each pin is tested before every programming operation
